BIPOLAR TRANSISTORS

AS HIGH SIDE SWITCHES

IN HIGH VOLTAGE, HIGH FREQUENCY

POWER SUPPLIES

by

Applications Engineering Staff

POWERTECH, INC.

0-02 Fair Lawn Avenue - Fair Lawn, NJ 07410

Presented at the Twenty-First International Power Conversion Conference

Philadelphia, Pennsylvania - October 26, 1990

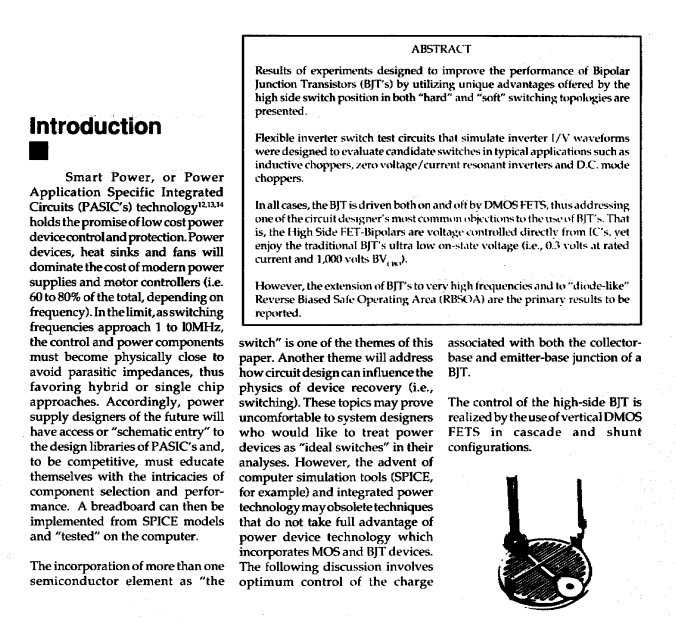

Page 1

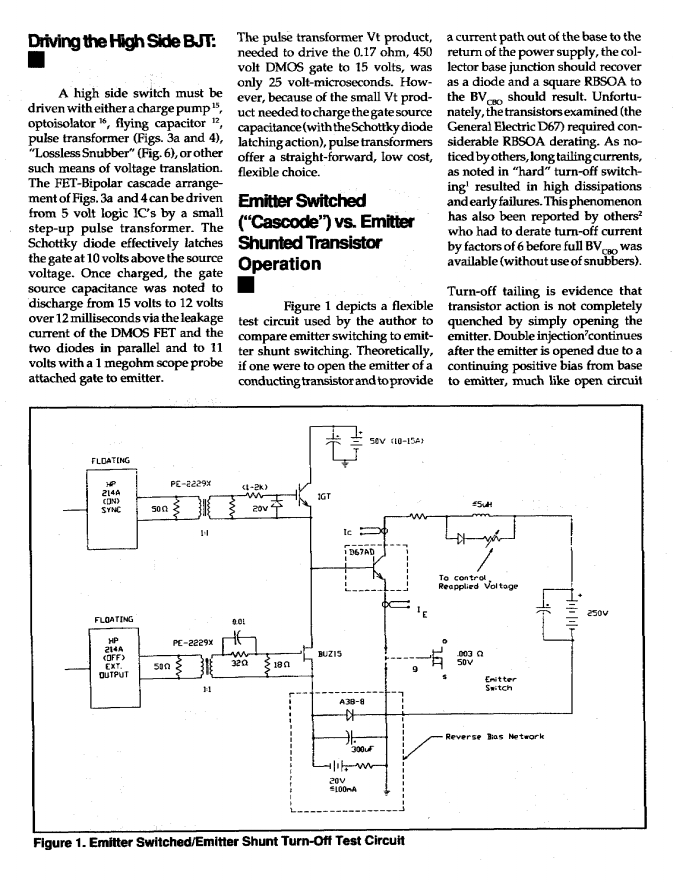

Page 2

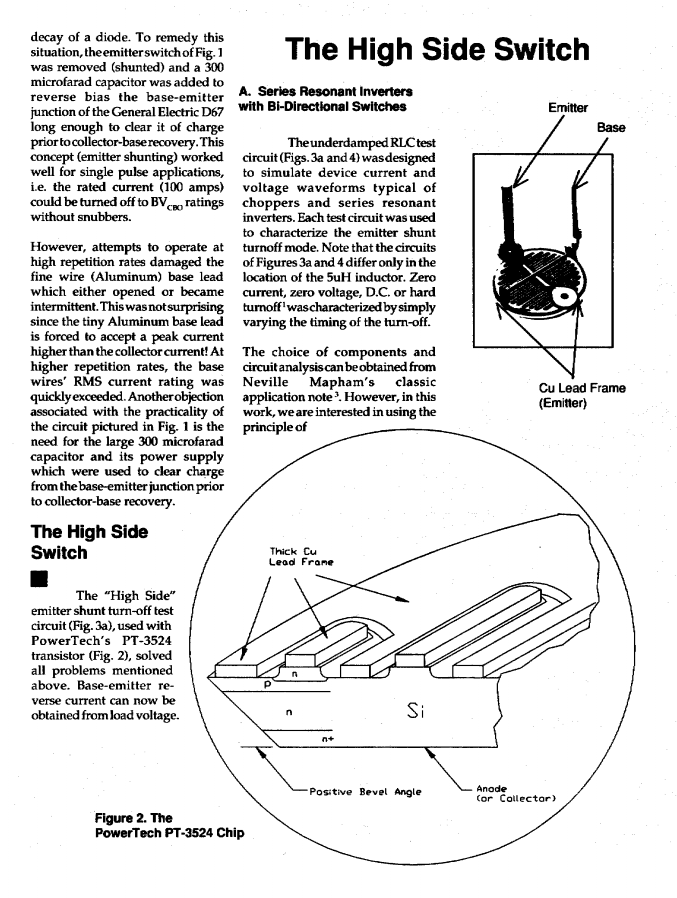

Page 3

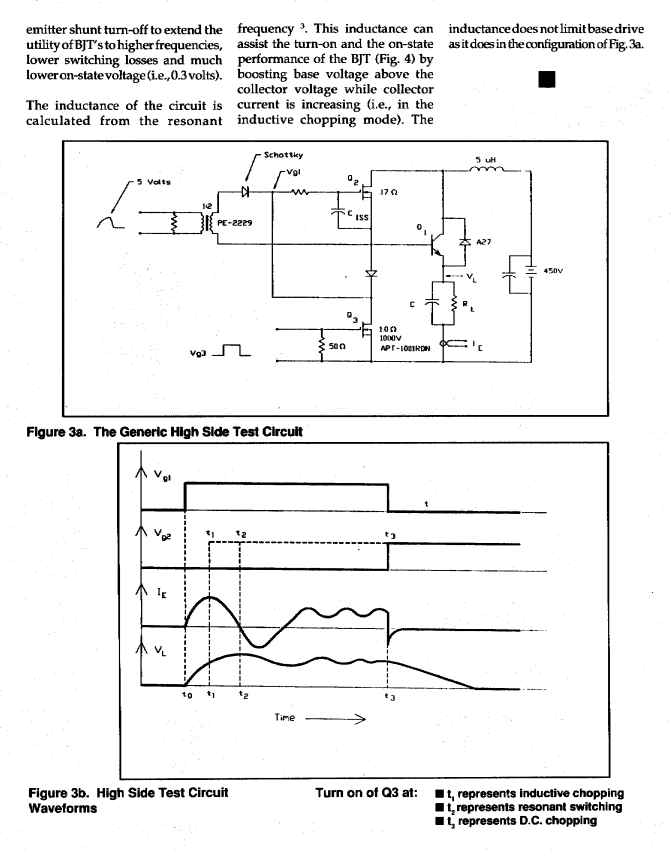

Page 4

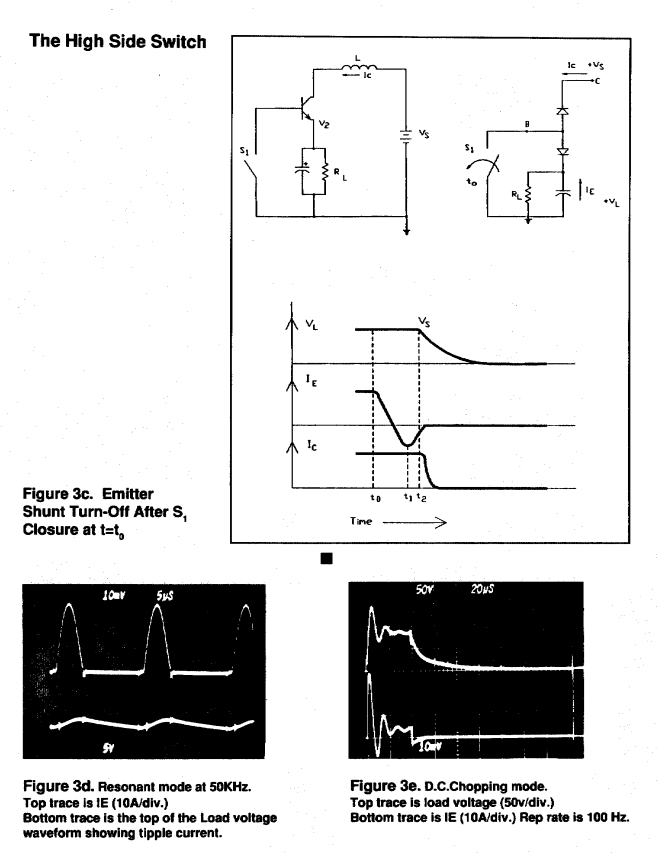

Page 5

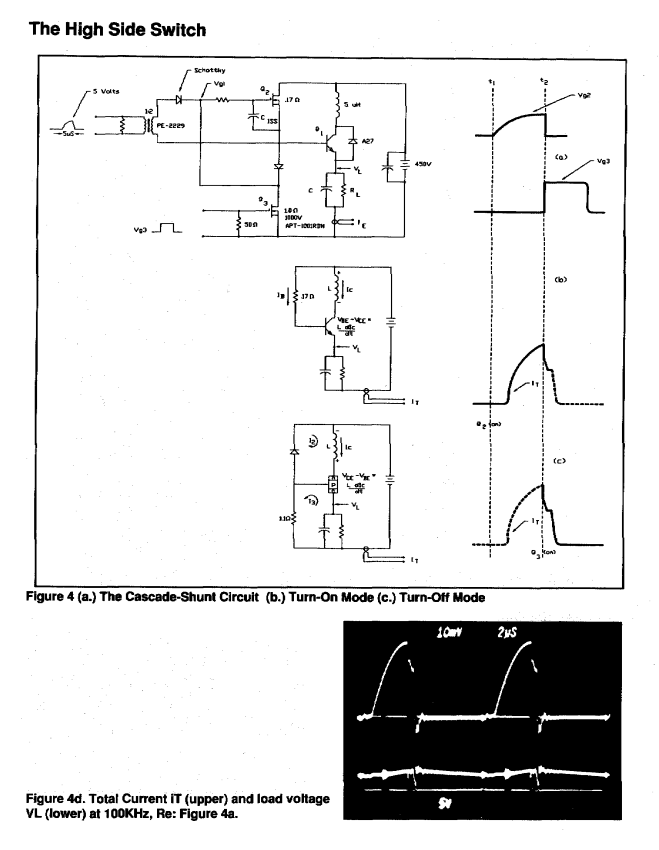

Page 6

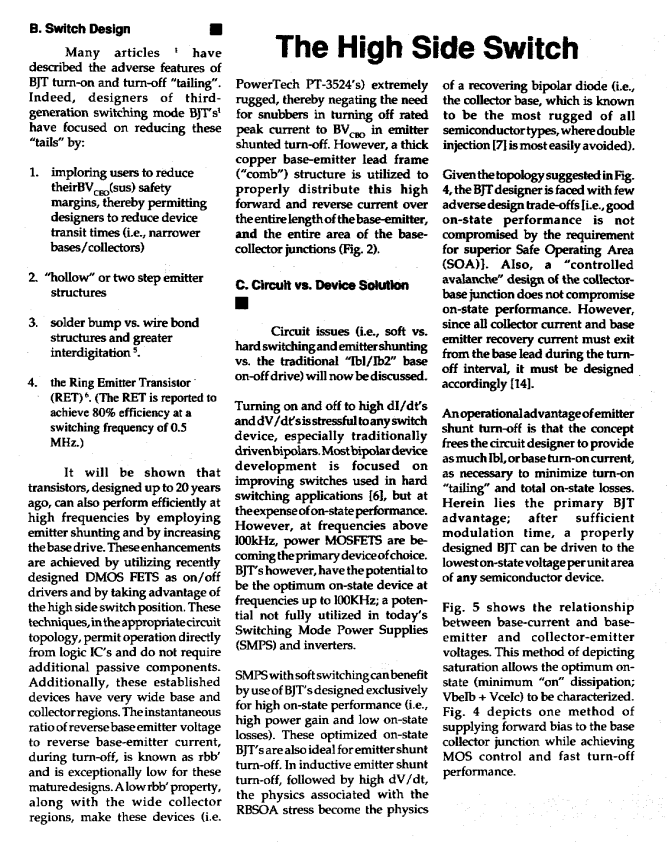

Page 7

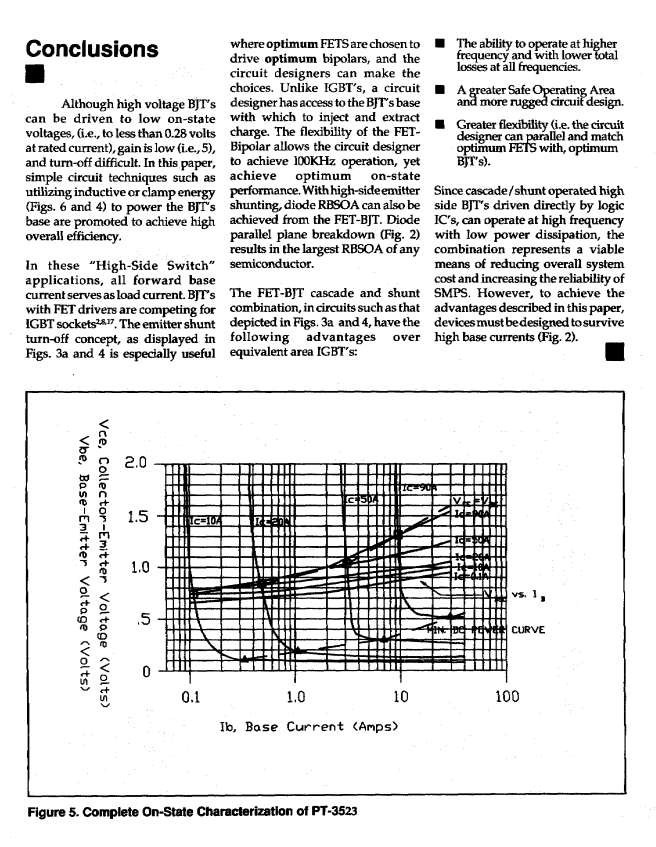

Page 8

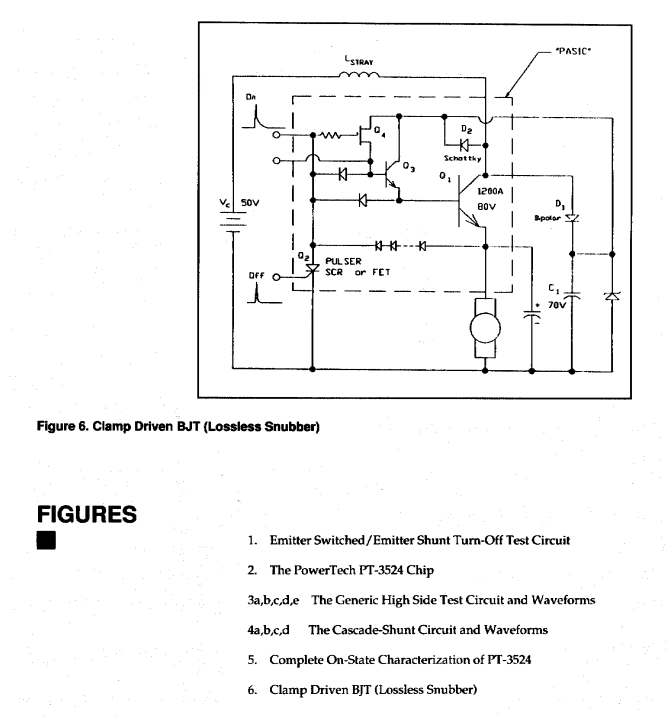

Page 9

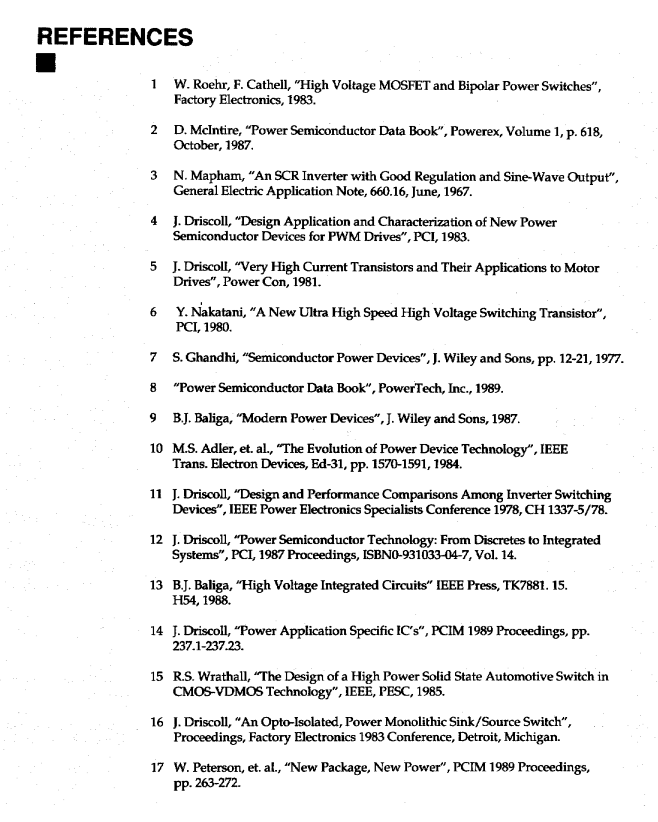

Page 10
